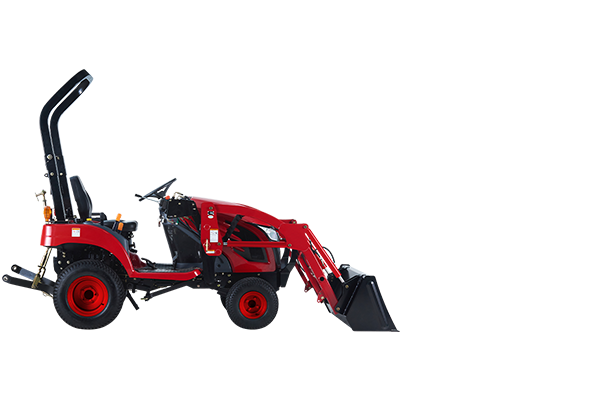

T194

Series 1 , Sub Compact Tractors

REQUEST QUOTE

Engine manufacturer

19 hp

Engine power

499 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specifications

Compatible Attachments

A SUB-COMPACT TRACTOR DESIGNED FOR FULL-SIZED TASKS

Perform the tasks fit for a full-size tractor while enjoying the agility and ease of use of a riding mower. With its unmatched versatility, the T194 embodies the essence of TYM Series 1 tractors as an indispensable groundskeeper for every property.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Ergonomic features for enhanced productivity

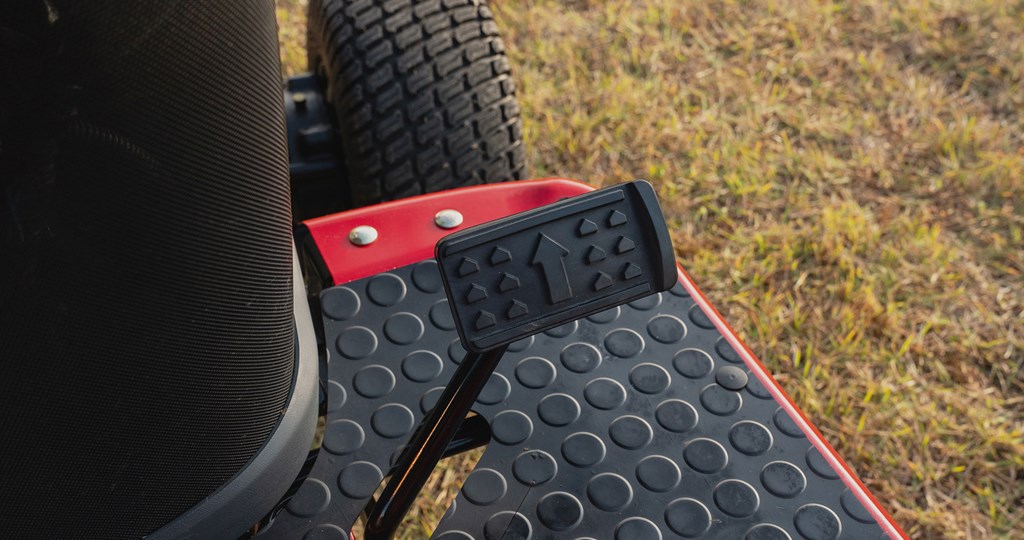

A wide operator cabin with a flat floor offers good visibility and ample leg room, while all controls are within arms’ reach. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be.

High torque, water-cooled Yanmar diesel engine

The Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is also Stage-V certified for environmental and noise emission standards.

Mid-mount linkage for mowing implements

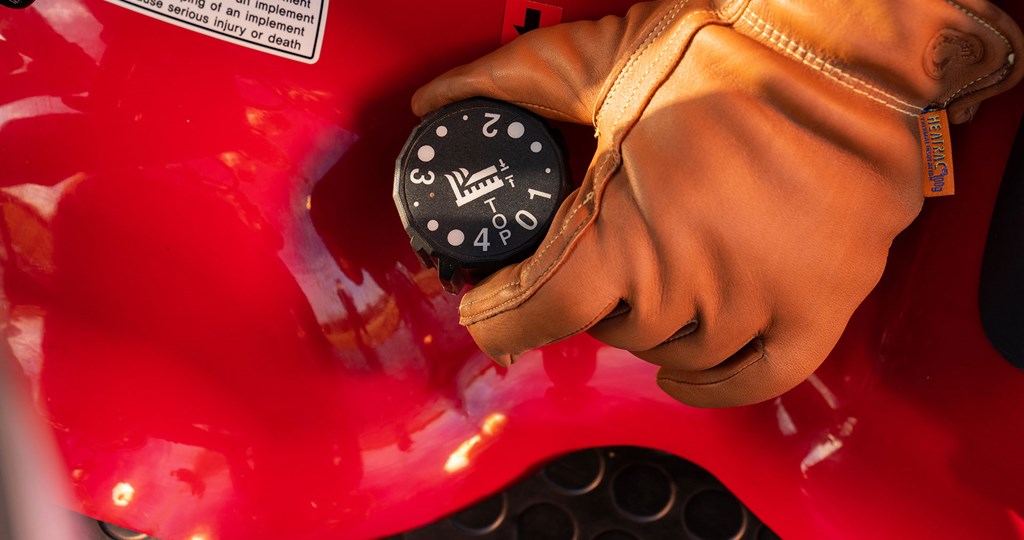

The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.

Easy to open hood for convenient maintenance

The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service, and important maintenance. The side panel can also be removed easily without the need for specialized tools.

Accessible fuel tank for easier refueling

Located on the right side of the driver’s seat, the fuel tank is easy to open with an ergonomically designed twist off cap. The tank can be topped up with fuel, even when attachments are connected to the tractor.

Foldable ROPS for storage in low-ceiling structures

The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

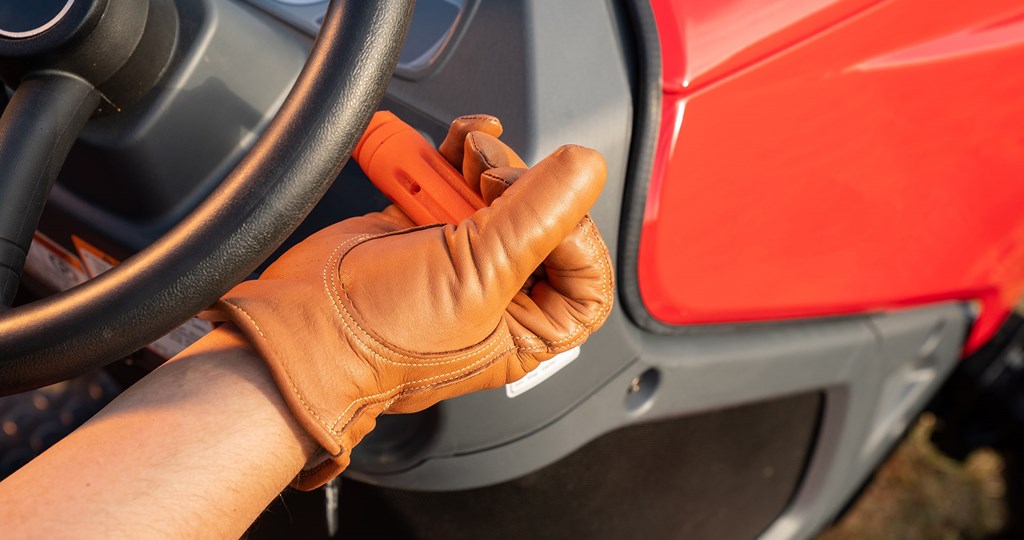

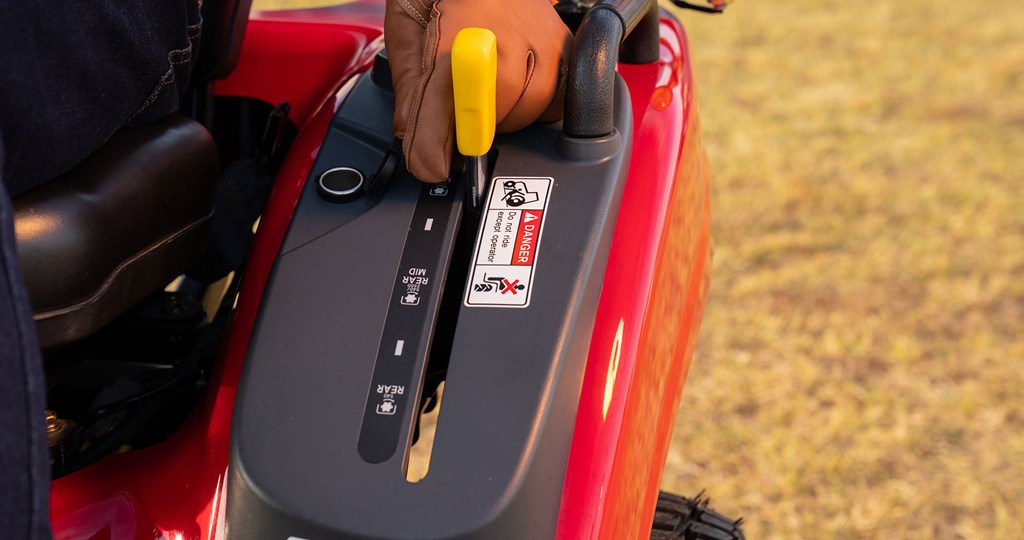

Controls to speed up, slow down, raise, or lower attachments

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

HST for infinitely variable drive speed

Responsive hydrostatic controls offer a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce operator effort during a range of tasks, especially while operating the optional front-end loader.

All the right features to get the job done

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.

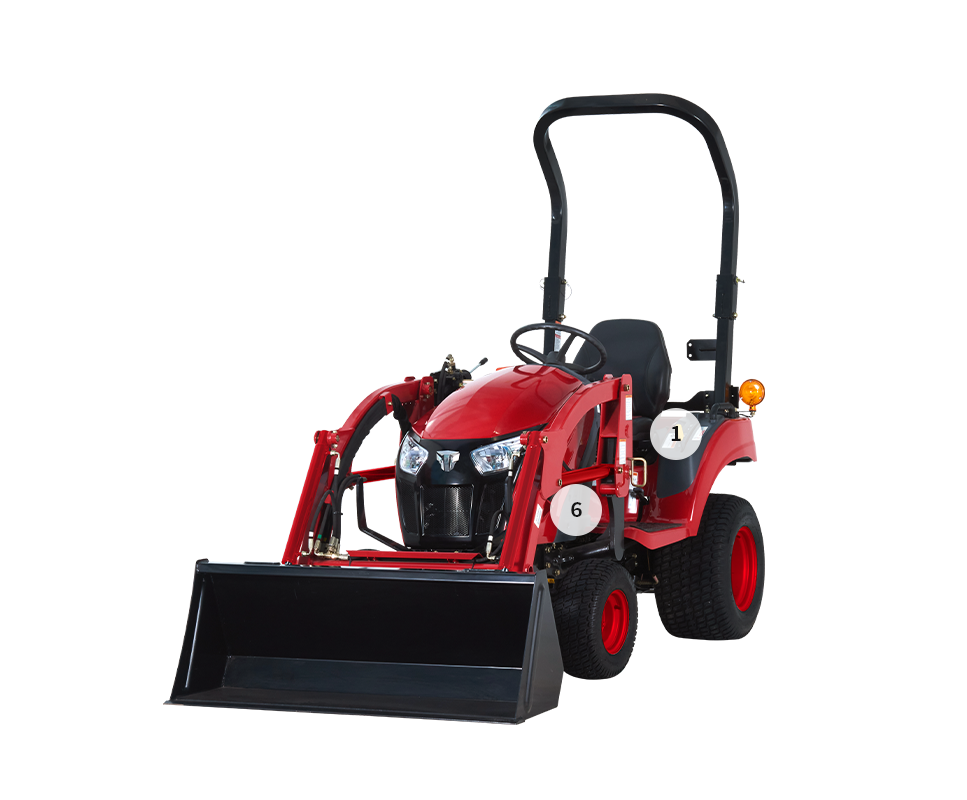

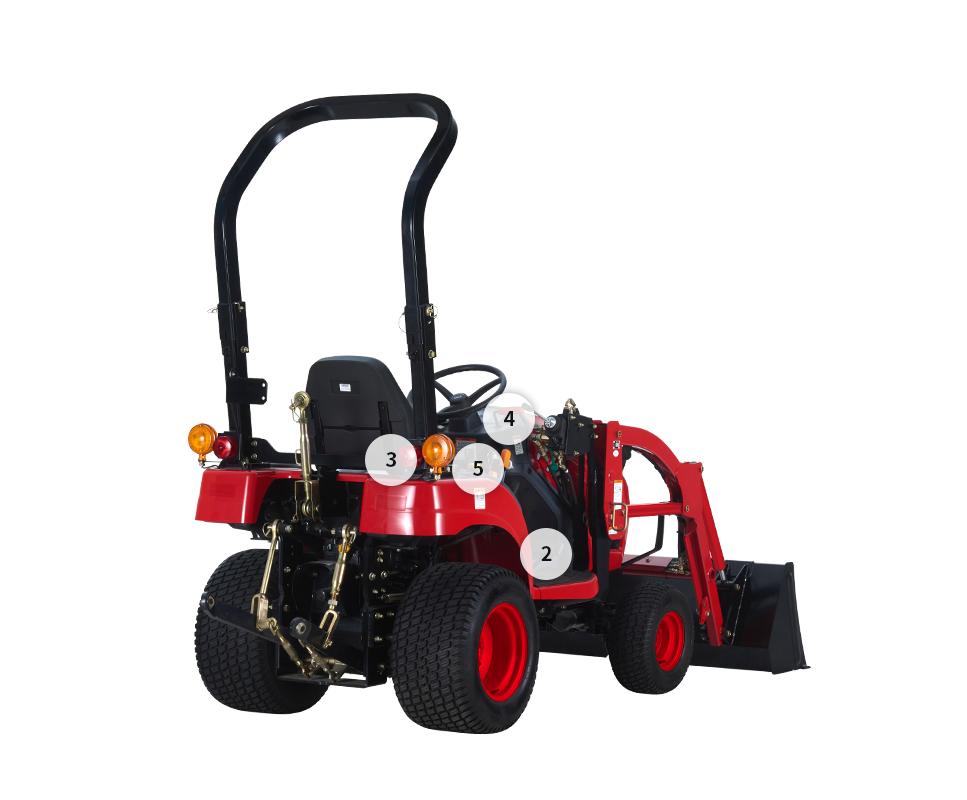

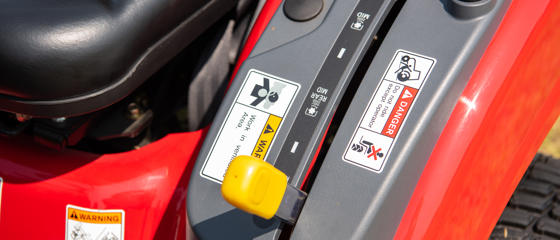

1. PTO lever for mid and rear rpm

1. 2-range hydrostatic transmission (HST)

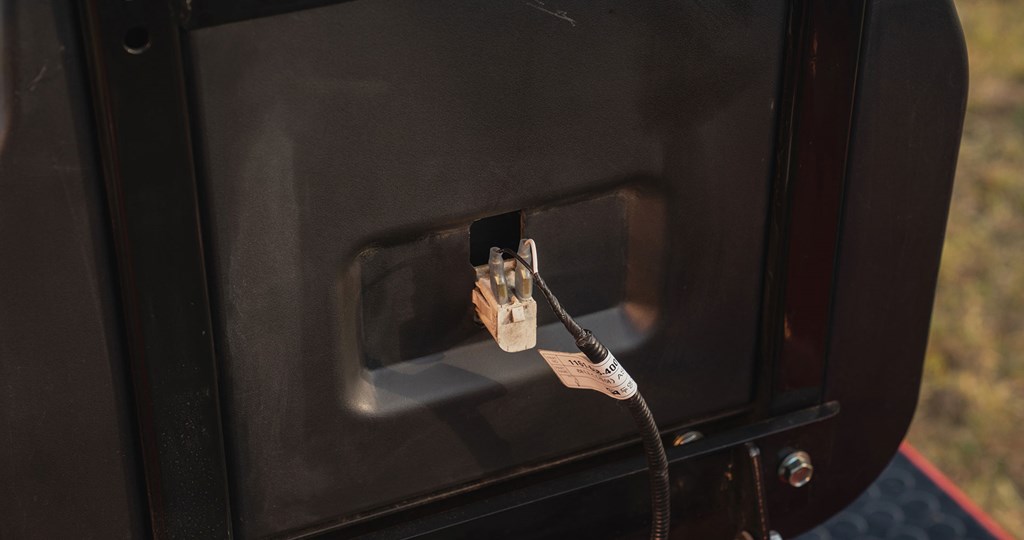

3. Safety seat sensor

4. Throttle lever

5. PTO on/off switch

6. Dial adjustment for mower height

Designed for applications in and around your property

This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.

Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.

Landscaping

With narrow dimensions, small turning radius, and a lightweight design, a TYM sub-compact tractor is perfect for home gardens and yards.

Arable Farming

With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden.

Cleaning

Complete chores around your property with ease. From removing dirt from your driveway to moving fallen leaves, a TYM sub-compact tractor offers the right mix of size and power for efficient performance.

Livestock & Poultry

A TYM sub-compact tractor has the light body and small turning radius to help you maintain animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste, and much more.

STORIES FROM THE FIELD

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

SEE TYM’S CUSTOMER STORIES

Technical specifications

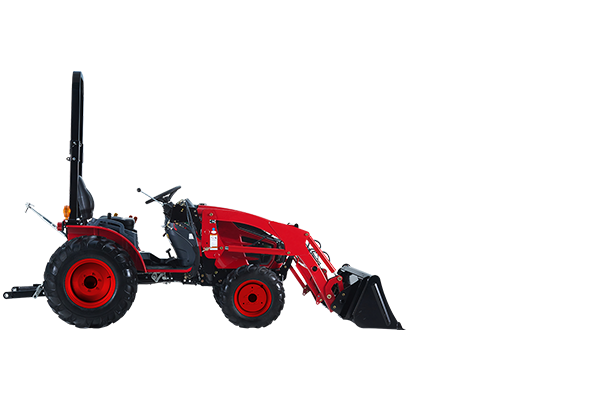

Tractors Model	T194	T255	T265
Engine manufacturer	Yanmar 3TNV74F	Yanmar 3TNV76-UD	TYM T1100N4
Engine power	19 hp \| 14.2 kW	25.3 hp \| 18.9 kW	24 hp \| 18 kW
Rated engine speed	3000 rpm	2800 rpm	2600 rpm
Displacement	993 cc \| 60.6 cu. in.	1116 cc \| 68.1 cu. in.	1175 cc \| 71.7 cu. in.
No. of speeds	2 Range	SS: F6 x R2 HST: 2-Range	Infinite 2-Range
Hitch lift capacity	499 kg \| 1100 lb	551 kg \| 1214 lb	696 kg \| 1534 lb
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	25 L \| 6.6 gal	22 L \| 5.8 gal	25 L \| 6.6 gal
Overall length with 3-point hitch	2394 mm \| 94.2 in.	2668 mm \| 100.5 in.	2868 mm \| 112.9 in.
Overall width	1130 mm \| 44.5 in.	1286 mm \| 50.6 in.	1430 mm \| 56.3 in.
Wheelbase	1350 mm \| 53.1 in.	1460 mm \| 57.5 in.	1480 mm \| 58.3 in.
Height to top of ROPS	2200 mm \| 86.6 in.	2320 mm \| 91.3 in.	2514 mm \| 99.0 in.
Min. ground clearance	210 mm \| 8.3 in.	240 mm \| 9.4 in.	240 mm \| 9.4 in.
Weight with ROPS	650 kg \| 1433 lb	843 kg \| 1858.5 lb	995 kg \| 2193.6 lb
R1 Agricultural - Front	BAR F 16x6.50-8	6.0-12 4PR	6.0-12 4PR
R1 Agricultural - Rear	BAR R 24x12.00-12	9.5-16 6PR	9.52-20 6PR
Download	Technical Brochure	Technical Brochure	Technical Brochure
