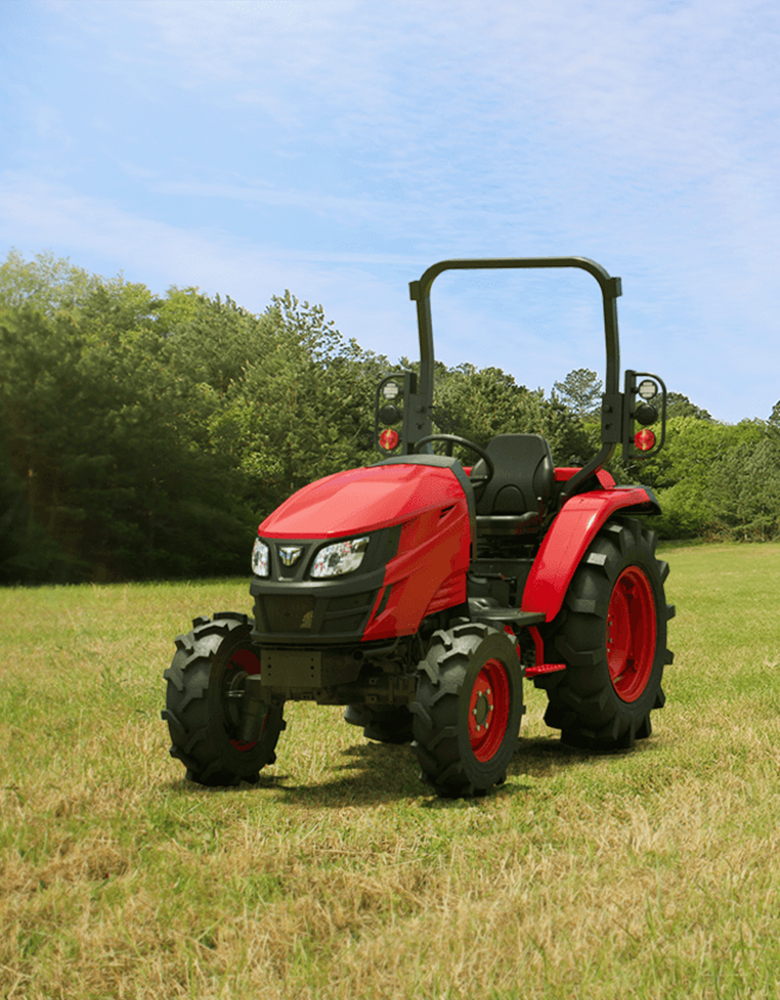

T395 Series 2, Compact Tractor
-
Engine power
36.9 hp
-
Hitch lift capacity
1197 kg
Take on harder tasks in smaller spaces with the T395, designed to be compact, proven to be durable and engineered to be efficient. This tractor is a workhorse in greenhouses, orchards and more.
Promoting thriving crop in your acreage
With powerful lift capabilities in a compact body, a TYM compact tractor enables you to perform tasks within the narrow spaces between garden beds. Save time and labor to realize your vision quickly and efficiently, from tilling and leveling the land to scattering soil and seed treatment, you can grow your own orchard or raise vegetable and fruit beds within your estate. With the option of shorter variations, you can find a sub-compact tractor to support smaller greenhouse operations.
Helping realize projects on your property
From site preparation to finishing, a TYM compact tractor is an ideal choice for construction projects on your land. Compatible with a backhoe, front loader, grapples, post-hole diggers and more, this tractor can assist or take over a project. Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Bringing safer access to your property in the winter
With a greater engine controls and a larger fuel tank, a TYM compact tractor is equipped to perform short or long duration tasks. Clear snow from paved surfaces along your estate or private access roads to your property. With the flexibility to use specialized implements on different structures, you can choose a snow blower, snow push, brooms and more to achieve the results you’re looking for.
Supporting the vision for your property
With greater lift capacity and multi-functional capabilities, a TYM compact tractor helps you accomplish everything from basic lawn care and weed control to installing water features and garden accents. Smaller design, greater control over engine speeds, intuitive operator features and compatibility with a range of specialized implements allow access to narrower spaces, promoting productivity and faster results.
While the exterior of this tractor demonstrates a sleek and rugged design, the interior is packed with in-cabin controls and features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out.
Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light-to-medium duty jobs, all year round.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
Powerful features to drive tractor performance
Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this Series 2 tractor keeps operators comfortable to take on challenges in warm or cold weather.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T395 |
|
|---|---|
|
engine
|
|
| Engine manufacturer | Yanmar 3TNV88C-D |
| Type | - |
| Gross engine power | 36.9 hp | 27.5 kW |
| PTO power | HST: 20.5 hp (20.5 kW) | SS: 29.1 hp (21.4 kW) |
| Rated engine speed | 3000 rpm |
| No. of cylinders | 3 |
| Displacement | 1642 cc |
| Air cleaner | Dual Dry |
| Alternator | 12V, 70A |
| Fuel system | CRDI |
|
powertrain
|
|
| Transmission type | Synchro-Shuttle/HST |
| No. of speeds | F12xR12/Infinite 3-range |
| Max. traveling speed | 24.2 kmph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
hydraulic system
|
|
| Pump type | Dual Gear Pump |
| Implement flow | 23.09 l/min |
| Steering flow | 16.66 l/min |
| Total flow | 39.75 l/min |
| Category, 3-point hitch | I |
| Hitch lift capacity | 1197 kg |
| Hitch lift capacity at 24 inches behind link ends | 707 kg |
| Lift control type | Position |
| No. of standard remote valves | SS: 2 | HST: 1 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
capacities
|
|
| Fuel tank | 34 L |
| Coolant | 7 L |
| Crankcase | 5.7 L |
| Transmission/Hydraulics system | 32.2 L |
| Front axle | 8.2 L |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | ROPS: 3250 mm (128 in.) | Cab: 3200 mm (126 in.) |
| Overall width | ROPS: 1360 mm (53.5 in.) | Cab: 1475 mm (58.1 in.) |
| Wheelbase | SS: 1700 mm (66.9 in.) | HST: 1680 mm (66.1 in.) |
| Min. ground clearance | SS: 325 mm (12.8 in.) | HST: 350 mm (13.8 in.) |
| Min. turn radius with brakes | 2400 mm |
| Min. turn radius without brakes | 2950 mm |
| Height to top of ROPS | ROPS: 2400 mm (94.5 in.) | Cab: 2350mm (92.5 in.) |
| Weight with ROPS | 1370 kg |
| Weight with cab | 1550 kg |
|
standard tires
|
|
| R1 Agricultural - Front | 8.0-16 |
| R1 Agricultural - Rear | 12.4-24 |
| R3 Turf - Front | 27x10.5-15 |
| R3 Turf - Rear | 41x14.00-20 |
| R4 Industrial - Front | 27x10.5-15 |
| R4 Industrial - Rear | 12.5x20 |
| Request Quote Build Your Own |
Downloads and useful resources
TYM machines are renowned for their reliability and economy. Find useful files such as parts catalogs and operator manuals for your tractor, or read through our series of useful resources for your TYM tractor.
