T2300N2

Engine power

Bore x Stroke

Displacement

This transplanter is capable of high-precision transplanting, bringing together enhanced design, a wide operator station and advanced technology.

*Images on this page are for illustrative purposes only. The actual product may vary.

48 ps / 2600 rpm

Best-in-class power with low vibration and noise to enhance driving experience.

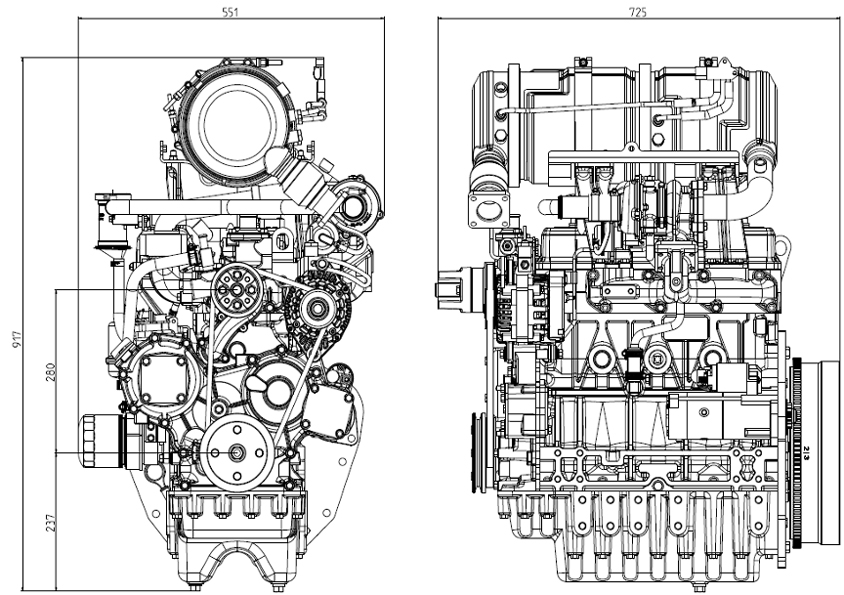

Engine size (length × width × height)

677 × 529 × 913 mm

Technical Specification

Diesel Engines Model	T2300N2	T1100N2	T1700N6
Engine power	48 hp	24 hp	24 hp
Bore x Stroke	88 × 94 mm \| 3.5 × 3.7 in.	78 × 82 mm \| 3 × 3.2 in.	88 × 94 mm \| 3.5 x 3.7 in.
Displacement	2287 cc \| 139.5 cu. in.	1175 cc \| 71.7 cu. in.	1715 cc \| 104.6 cu. in.
Type	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine
Emissions standard	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5
No. of cylinders	4	3	3
Combustion system	IDI (Swirl chamber)	IDI (Swirl chamber)	IDI (Swirl chamber)
Intake system	Natural aspirated	Natural aspirated	Natural aspirated
Rated engine speed	2600 rpm	2800 rpm	2100 rpm
Direction of rotation	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)
Cooling system	Counterclockwise (From flywheel)	Pressurized radiator	Pressurized radiator
Lubricant capacity	4.5 L \| 1.2 gal	2.8 L \| 0.7 gal	4.3 L \| 1.1 gal
Starter	12 V, 2.2 kW	12 V, 1.4 kW	12 V, 1.4 kW
Alternator	12 V, 50 A (70)	12 V, 50 A	12 V, 50 A
Length	699 mm \| 27.5 in.	489 mm \| 19.3 in.	615 mm \| 24.2 in.
Width	541 mm \| 21.3 in.	417 mm \| 16.4 in.	539 mm \| 21.2 in.
Height	949 mm \| 37.4 in.	643 mm \| 25.3 in.	620 mm \| 24.4 in.
