T2000N2

Diesel Engines

REQUEST QUOTE

43 hp

Engine power

88 × 94 mm

Bore x Stroke

2084 cc

Displacement

Technical Specifications

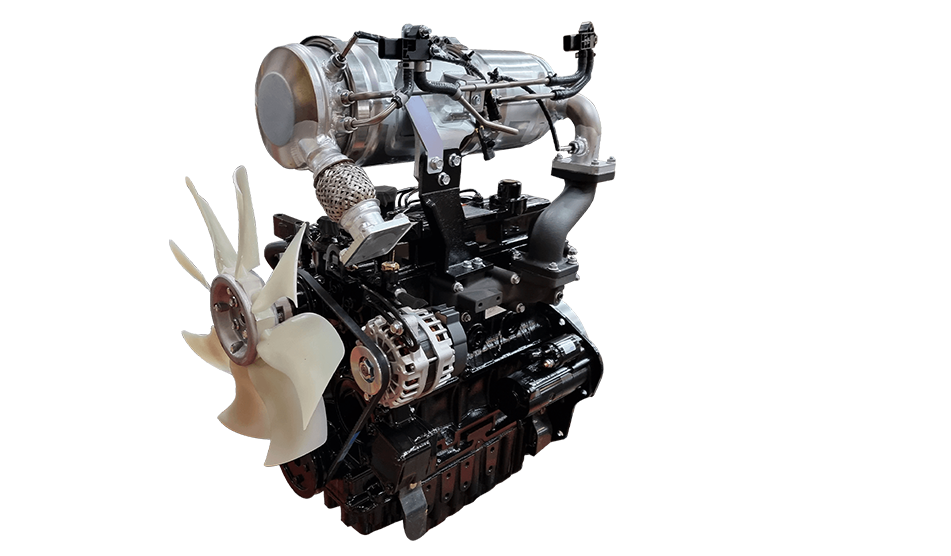

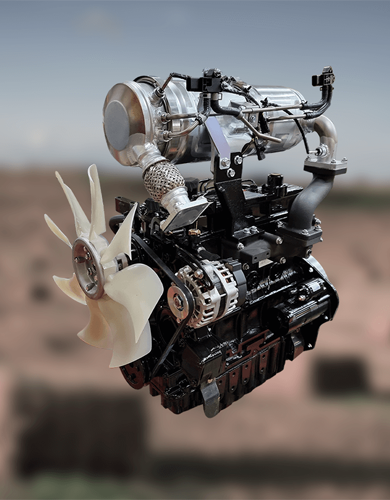

Efficient mid-compact engine

The T2000N2 engine is designed for generators, forklifts and skid loaders, and are easy to maintain and handle. This eco-friendly engine has a EPA Final Tier-4 rating.

*Images on this page are for illustrative purposes only. The actual product may vary.

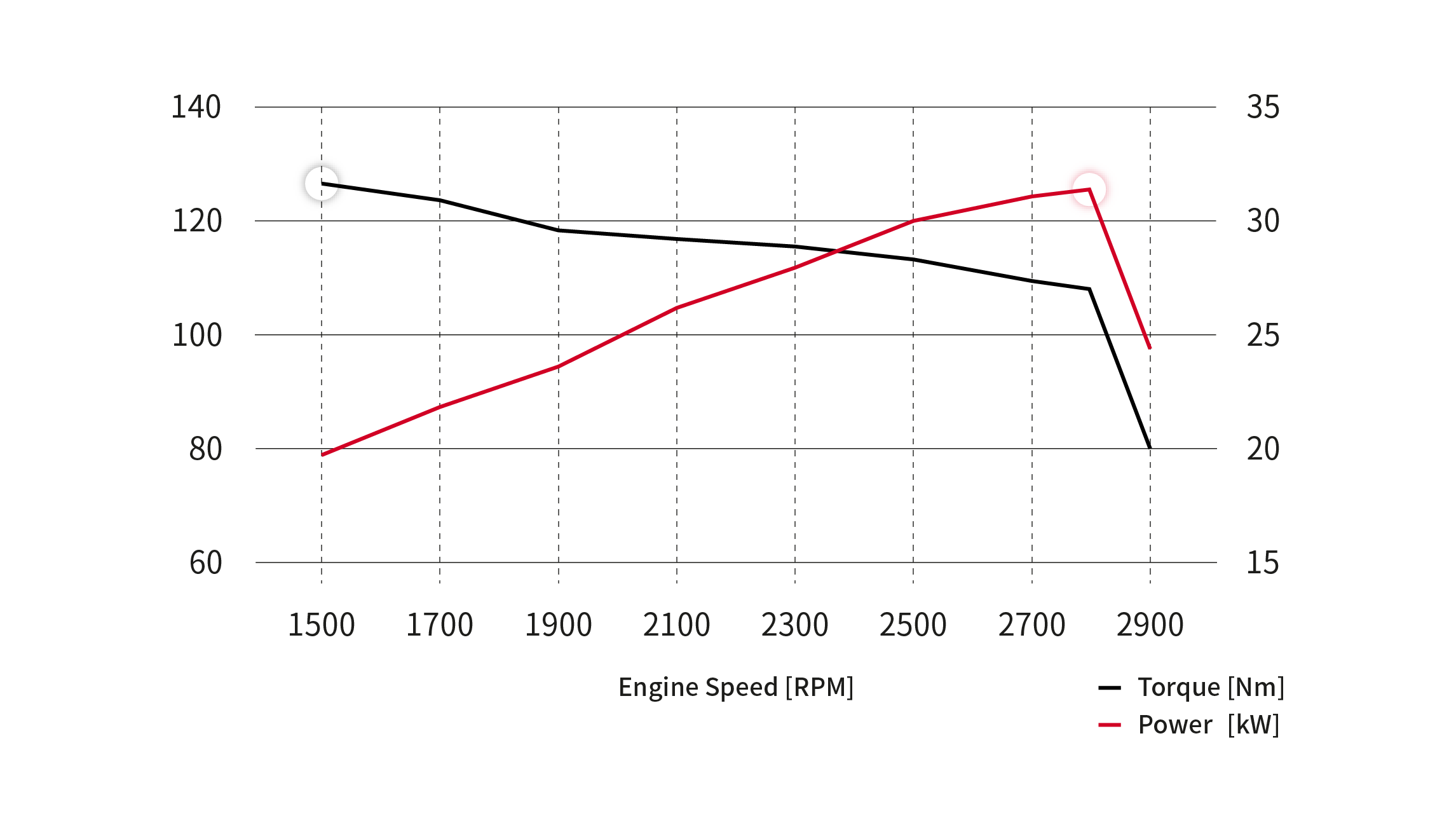

Performance Curves

42 ps / 2600 rpm

Best-in-class power with low vibration and noise to enhance driving experience.

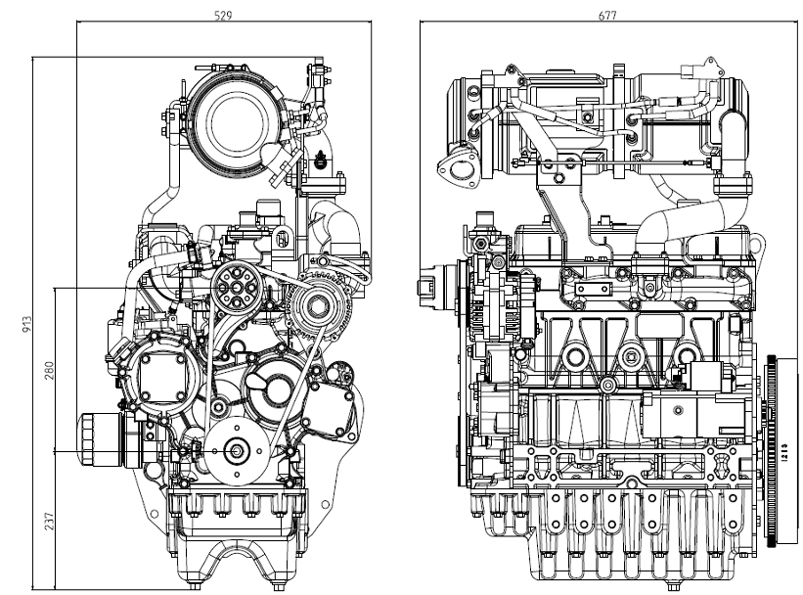

Dimensions

Engine size (length × width × height)

677 × 529 × 913 mm

Technical Specification

Diesel Engines Model	T2000N2	T1100N2	T1700N6
Engine power	43 hp	24 hp	24 hp
Bore x Stroke	88 × 94 mm \| 3.5 × 3.7 in.	78 × 82 mm \| 3 × 3.2 in.	88 × 94 mm \| 3.5 x 3.7 in.
Displacement	2084 cc \| 127.2 cu. in.	1175 cc \| 71.7 cu. in.	1715 cc \| 104.6 cu. in.
Type	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine
Emissions standard	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5
No. of cylinders	4	3	3
Combustion system	IDI (Swirl chamber)	IDI (Swirl chamber)	IDI (Swirl chamber)
Intake system	Natural aspirated	Natural aspirated	Natural aspirated
Rated engine speed	2600 rpm	2800 rpm	2100 rpm
Direction of rotation	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)
Cooling system	Pressurized radiator	Pressurized radiator	Pressurized radiator
Lubricant capacity	4.5 L \| 1.2 gal	2.8 L \| 0.7 gal	4.3 L \| 1.1 gal
Starter	12 V, 2.2 kW	12 V, 1.4 kW	12 V, 1.4 kW
Alternator	12 V, 50 A (70)	12 V, 50 A	12 V, 50 A
Length	699 mm \| 27.5 in.	489 mm \| 19.3 in.	615 mm \| 24.2 in.
Width	541 mm \| 21.3 in.	417 mm \| 16.4 in.	539 mm \| 21.2 in.
Height	949 mm \| 37.4 in.	643 mm \| 25.3 in.	620 mm \| 24.4 in.
