T1700N6

Diesel Engines

REQUEST QUOTE

24 hp

Engine power

1715 cc

Displacement

88 × 94 mm

Bore x Stroke

Technical Specifications

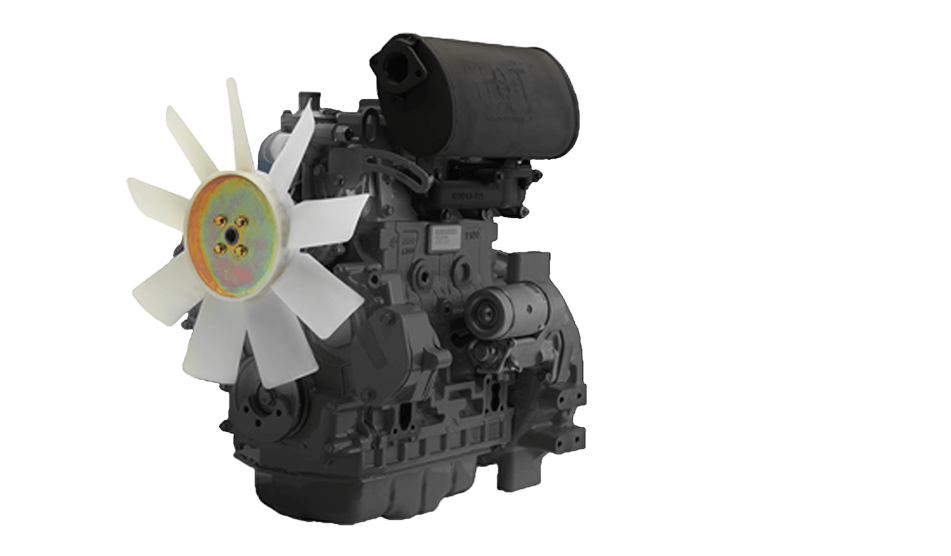

Efficient mid-compact engine

The T1700N6 engine is designed for generators, forklifts and skid loaders, and are easy to maintain and handle. This eco-friendly engine has a EPA Final Tier-4 rating.

*Images on this page are for illustrative purposes only. The actual product may vary.

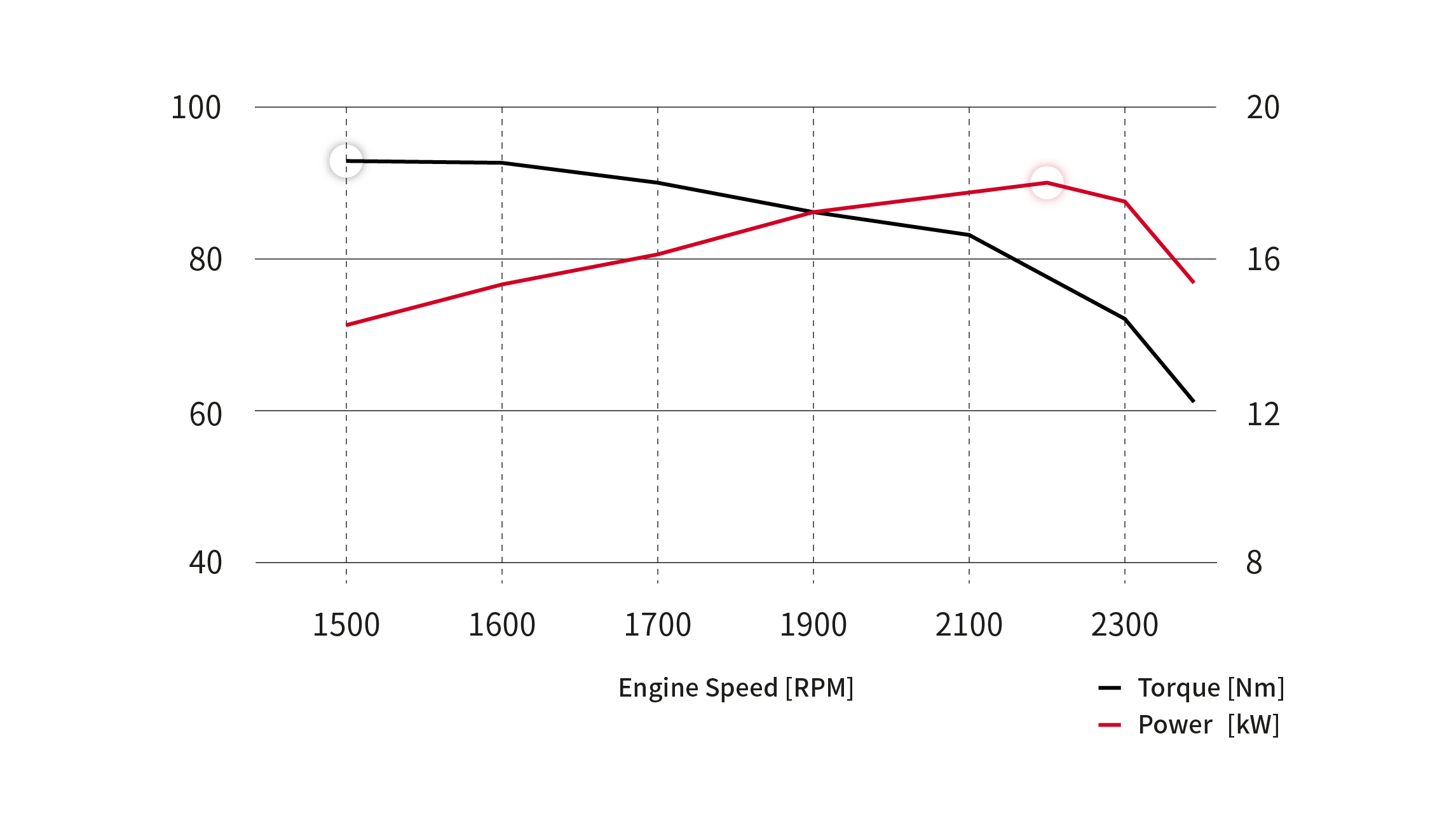

Performance Curves

24 ps / 2100 rpm

Best-in-class power with low vibration and noise to enhance driving experience.

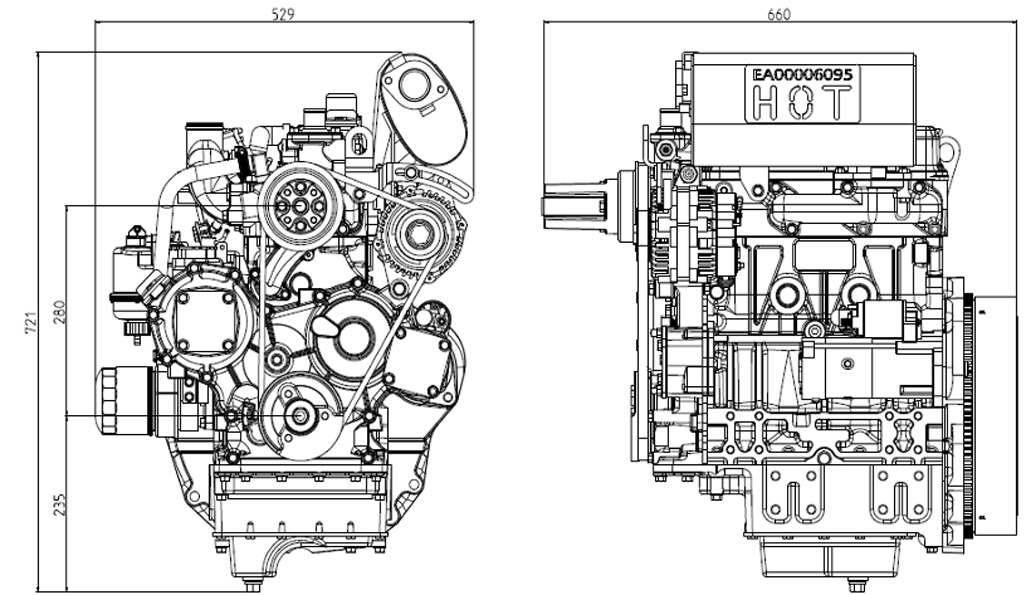

Dimensions

Engine size (length × width × height)

660 × 529 × 721 mm

Technical Specification

Diesel Engines Model	T1700N6	T1100N2	T2000N2
Engine power	24 hp	24 hp	43 hp
Bore x Stroke	88 × 94 mm \| 3.5 x 3.7 in.	78 × 82 mm \| 3 × 3.2 in.	88 × 94 mm \| 3.5 × 3.7 in.
Displacement	1715 cc \| 104.6 cu. in.	1175 cc \| 71.7 cu. in.	2084 cc \| 127.2 cu. in.
Type	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine
Emissions standard	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5
No. of cylinders	3	3	4
Combustion system	IDI (Swirl chamber)	IDI (Swirl chamber)	IDI (Swirl chamber)
Intake system	Natural aspirated	Natural aspirated	Natural aspirated
Rated engine speed	2100 rpm	2800 rpm	2600 rpm
Direction of rotation	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)
Cooling system	Pressurized radiator	Pressurized radiator	Pressurized radiator
Lubricant capacity	4.3 L \| 1.1 gal	2.8 L \| 0.7 gal	4.5 L \| 1.2 gal
Starter	12 V, 1.4 kW	12 V, 1.4 kW	12 V, 2.2 kW
Alternator	12 V, 50 A	12 V, 50 A	12 V, 50 A (70)
Length	615 mm \| 24.2 in.	489 mm \| 19.3 in.	699 mm \| 27.5 in.
Width	539 mm \| 21.2 in.	417 mm \| 16.4 in.	541 mm \| 21.3 in.
Height	620 mm \| 24.4 in.	643 mm \| 25.3 in.	949 mm \| 37.4 in.
