T1100N2

Diesel Engines

REQUEST QUOTE

24 hp

Engine power

78 × 82 mm

Bore x Stroke

1175 cc

Displacement

Technical Specifications

Best-in-class compact engine

The T1100N2 engine is eco-friendly with an EPA Final Tier-4 rating. This engine has a sleek, compact, and lightweight design that is easy to maintain and handle.

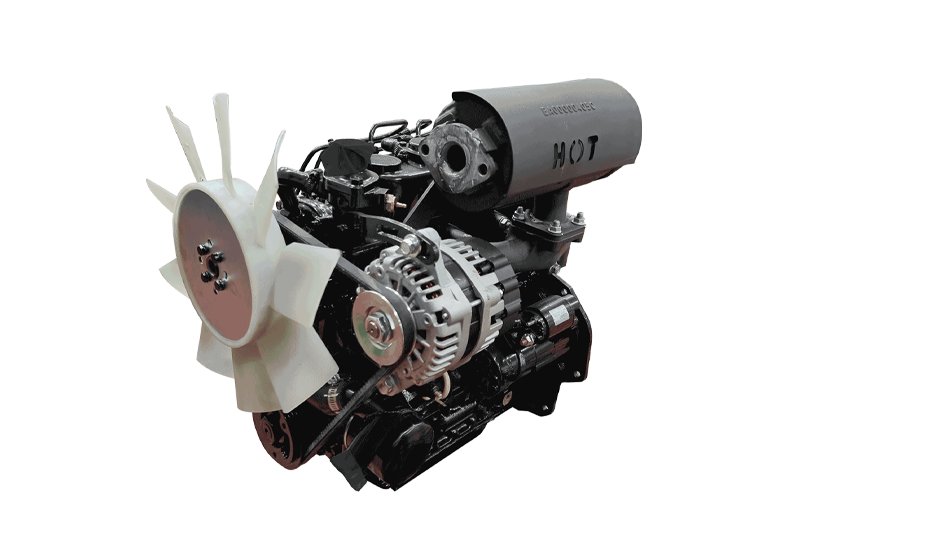

*Images on this page are for illustrative purposes only. The actual product may vary.

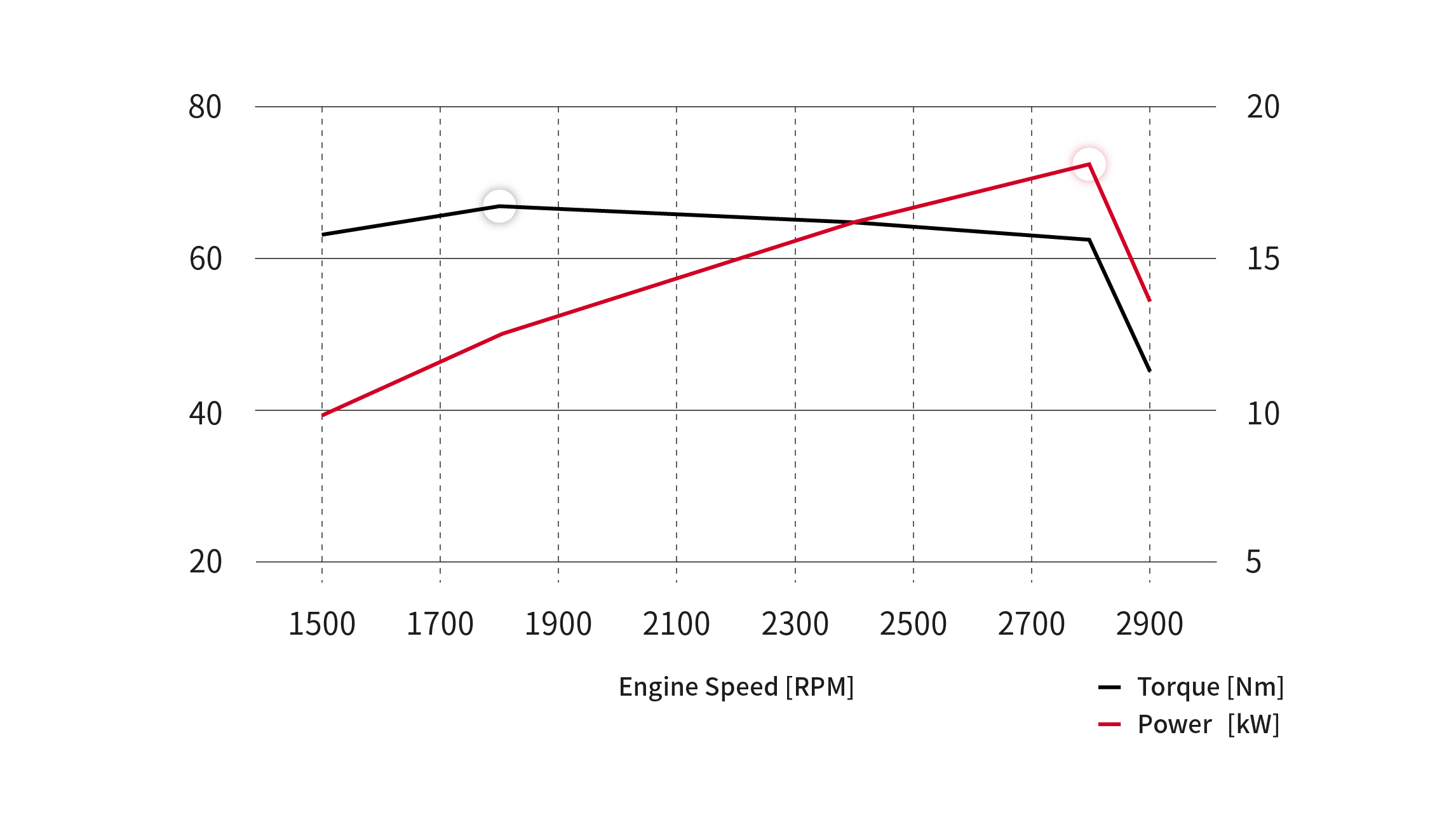

Performance Curves

24 ps / 2800 rpm

Best-in-class power with low vibration and noise to enhance driving experience.

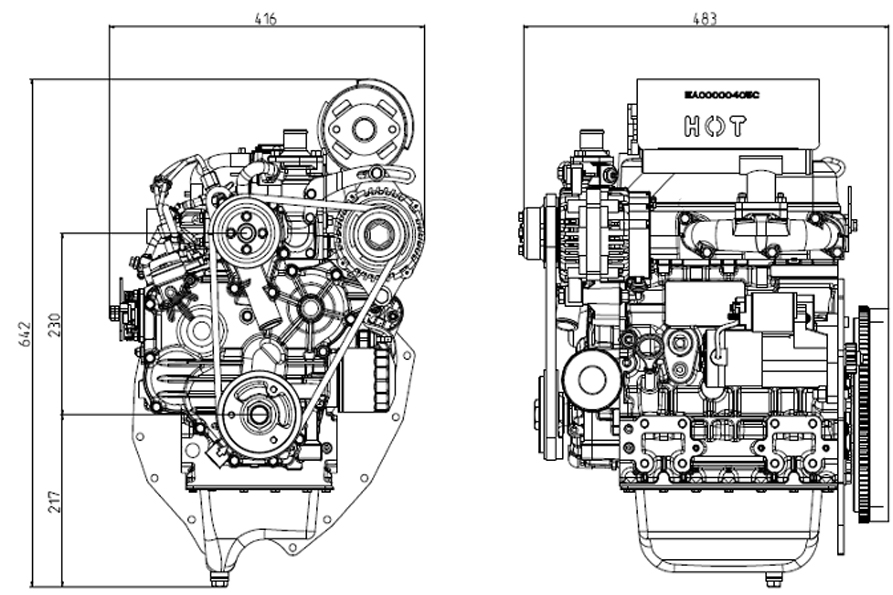

Dimensions

Engine size (length × width × height)

483 × 416 × 642 mm

Technical Specification

Diesel Engines Model	T1100N2	T1700N6	T2000N2
Engine power	24 hp	24 hp	43 hp
Bore x Stroke	78 × 82 mm \| 3 × 3.2 in.	88 × 94 mm \| 3.5 x 3.7 in.	88 × 94 mm \| 3.5 × 3.7 in.
Displacement	1175 cc \| 71.7 cu. in.	1715 cc \| 104.6 cu. in.	2084 cc \| 127.2 cu. in.
Type	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine
Emissions standard	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5
No. of cylinders	3	3	4
Combustion system	IDI (Swirl chamber)	IDI (Swirl chamber)	IDI (Swirl chamber)
Intake system	Natural aspirated	Natural aspirated	Natural aspirated
Rated engine speed	2800 rpm	2100 rpm	2600 rpm
Direction of rotation	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)
Cooling system	Pressurized radiator	Pressurized radiator	Pressurized radiator
Lubricant capacity	2.8 L \| 0.7 gal	4.3 L \| 1.1 gal	4.5 L \| 1.2 gal
Starter	12 V, 1.4 kW	12 V, 1.4 kW	12 V, 2.2 kW
Alternator	12 V, 50 A	12 V, 50 A	12 V, 50 A (70)
Length	489 mm \| 19.3 in.	615 mm \| 24.2 in.	699 mm \| 27.5 in.
Width	417 mm \| 16.4 in.	539 mm \| 21.2 in.	541 mm \| 21.3 in.
Height	643 mm \| 25.3 in.	620 mm \| 24.4 in.	949 mm \| 37.4 in.
